Steam trapping

View as Grid List

ARI-CODI S

Prefabricated compact manifolds for condensate collection and steam distribution - with stuffing box and vertical installation

eClass-No.:
Application: collects and distributes condensate, steam and fluids.
Medium: steam, condensate, water, oil, etc.

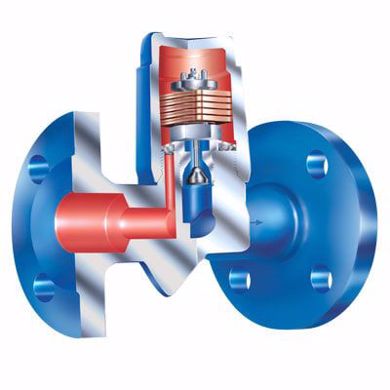

ARI-CONA B

Bimetallic steam trap

eClass-No.: 37010708
Application: for the discharge of condensate sub-cooled between 10 and 30 K.
Medium: steam, condensate, etc.

ARI-CONA Connector

System connector

eClass-No.: 37010790
Application: ventilation valve for pipelines, condensing vapour (steam) or liquid systems, where the system pressure should not fall below the atmospheric pressure.
Medium: steam, condensate, etc.

ARI-CODI B

Prefabricated compact manifolds for condensate collection and steam distribution - with bellow seal and vertical installation

eClass-No.:
Application: collects and distributes condensate, steam and fluids.
Medium: steam, condensate, water, oil, etc.

ARI-CONA Control

Monitoring system for steam traps / External test chamber

eClass-No.:
Application: individual error reports on every single steam trap in a matter of seconds thanks to the ASI bus wiring (and optional networking with higher-level bus systems).
Medium: steam, condensate, gases with liquid components, etc.

ARI-CONA M

Thermostatic steam trap

eClass-No.: 37010707/37011801
Application: for the discharge of condensate sub-cooled up to 40 K.
Medium: steam, condensate, etc.

ARI-CONA SC

Ball float steam trap

eClass-No.: 37010706
Application: for discharge of condensate at boiling temperature.
Medium: steam, condensate, gases with liquid components, etc.

Liquid drainer

Liquid drainer

eClass-No.: 37019090
Application: for automatic condensate-discharge during start-up and operation.
Medium: steam, condensate, etc.

ARI-CONA SC-Plus

Ball float steam trap

eClass-No.: 37010706
Application: for discharge of condensate at boiling temperature.
Medium: steam, condensate, gases with liquid components, etc.

Condensate discharge temperature limiter

Condensate discharge temperature limiter

eClass-No.: 37010790
Application: for the discharge of condensate without re-evaporation.
Medium: steam, condensate, etc.

ARI-CONA S

Ball float steam trap

eClass-No.: 37010706
Application: for discharge of condensate at boiling temperature.
Medium: steam, condensate, gases with liquid components, etc.

Liquid return temperature limiter

Liquid return temperature limiter

eClass-No.: 37019090
Application: return temperature limitation for a pipe tracing system.
Medium: steam, condensate, etc.

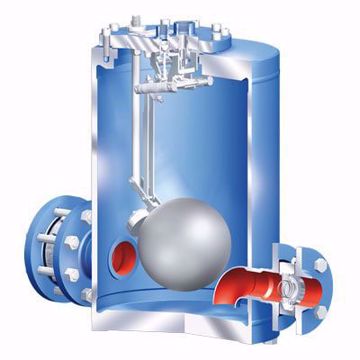

ARI-CONLIFT

Float-operated condensate pump

eClass-No.:
Application: for discharge of condensate with limited sub-cooling.
Medium: steam, condensate, etc.

Double window sight glasses

Double window sight glasses (Flow indicator)

eClass-No.: 37011301
Application: for monitoring the function of steam traps in pipe work systems.
Medium: steam, condensate, etc.

ARI-CONA P

Float-operated pump trap

eClass-No.:
Application: ventilation valve for pipelines, condensing vapour (steam) or liquid systems, where the system pressure should not fall below the atmospheric pressure.
Medium: steam, condensate, etc.

ARI-CONA TD

Thermodynamic steam trap

eClass-No.: 37010790
Application: for discharge of condensate with limited sub-cooling.
Medium: steam, condensate, etc.

ARI-CONA All-in-one

Bimetallic steam trap

eClass-No.: 37010708
Application: for discharge of condensate with limited sub-cooling.
Medium: steam, condensate, etc.
